Maximize Productivity with Combination Tools
3N1 countersinks combine drilling, countersinking, and chamfering into a single operation, reducing cycle time and tool changes.
The 3N1 design features a precision drill point that creates the pilot hole while the countersink body follows to create the chamfer - all in one pass. This eliminates the need for separate drilling and countersinking operations.

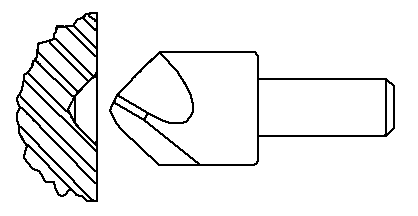

Drill
Creates pilot hole

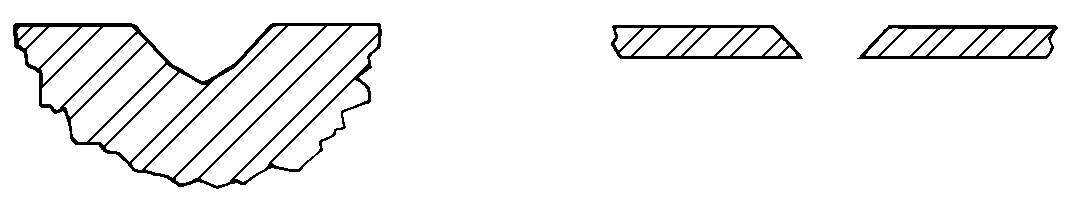

Countersink
Forms chamfer

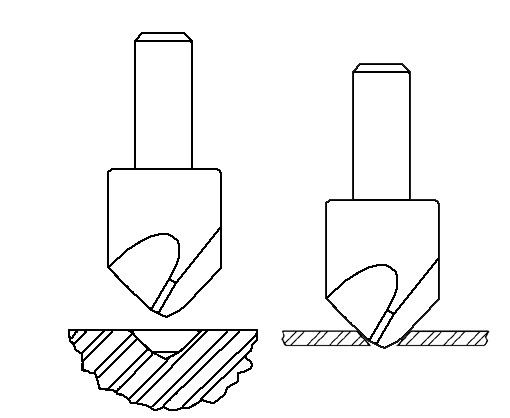

Chamfer
Deburrs edges
Benefits
- Reduced cycle time
- Fewer tool changes
- Consistent results
- Lower tooling cost
- Quick-change options
